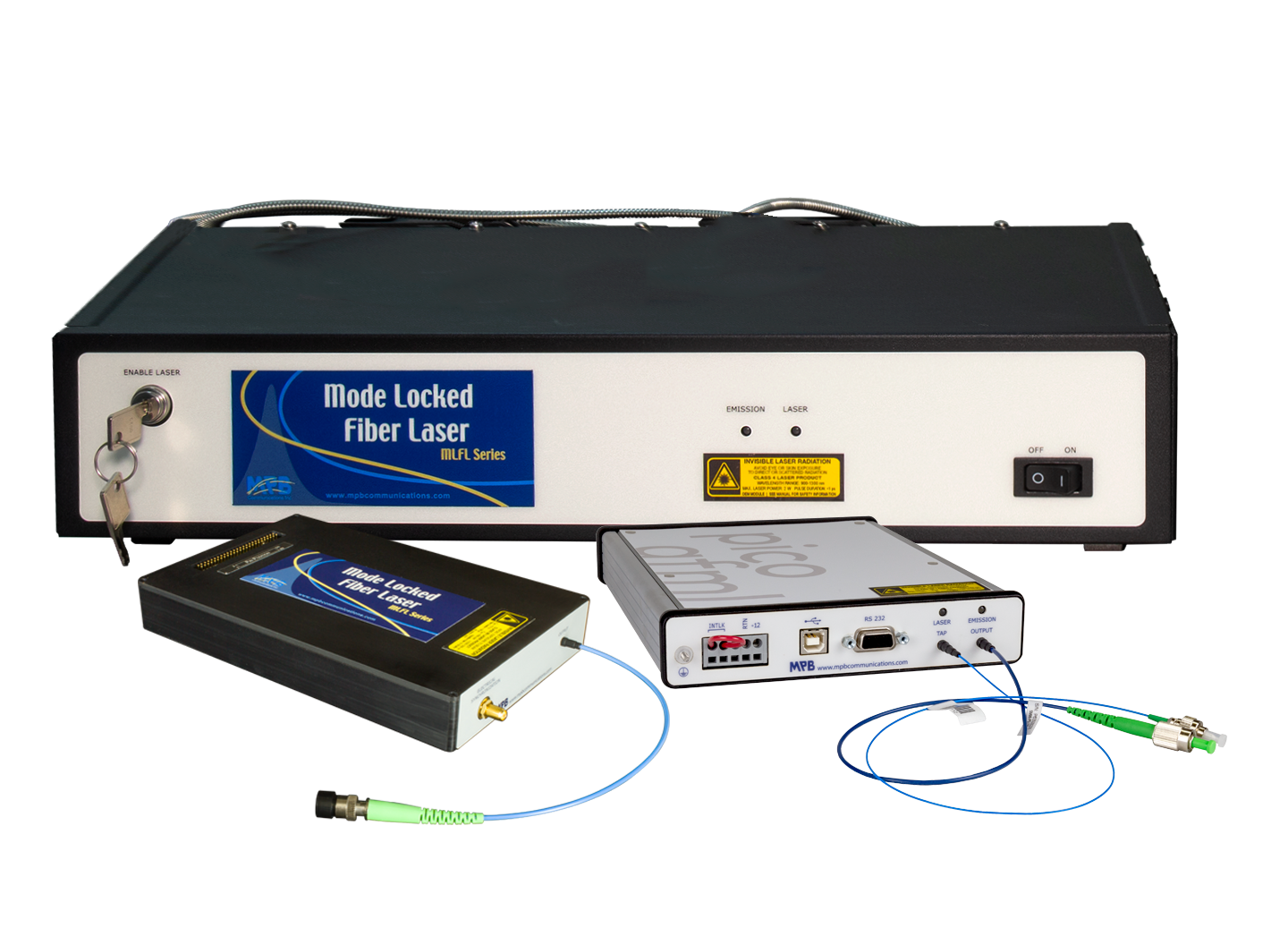

UFL-Pico Seeders

MPBC's UFL-Pico Seeders are mode-locked fiber lasers that deliver several milliwatts of output power. They produce picosecond pulses through polarization-maintaining fiber, offering either a narrow or broadband spectral bandwidth for diverse applications, including pulse compression.

These lasers generate picosecond pulses with exceptional beam quality. Designed for high stability across various environmental conditions, the UFL-Picosecond Seeders require no maintenance, ensuring reliable long-term operation. They are available with a wide range of wavelength selections and repetition rates.

All-fiber design with no bulk optics
Picosecond pulses delivered in PM fiber
Superior beam quality with M²<1.1
Compact size
Reliable self-start in less than 5 seconds
Excellent stability - Low amplitude and phase noise

MPBC's available SF Systems

1 W

2 W

3 W

4 W

5 W

6 W

7 W

8 W

9 W

10 W

461 nm *

488 nm *

514 nm

520-540 nm

541-560 nm

561-580 nm

581-600 nm

601-620 nm

621-639 nm

640-655 nm

660-665 nm

671 nm

678 nm

685-690 nm

710 nm

717 nm

729 nm

775 nm

781-800 nm *

813 nm *

832 nm *

Principales caractéristiques

01

All-fiber design with no bulk optics

The picosecond laser utilizes an all-fiber design with no bulk optics, ensuring enhanced stability

‍

02

Picosecond pulses delivered in PM fiber

Fiber delivery provides superior alignment stability

‍

03

Low Amplitude and Phase Noise

The fiber laser design ensures low amplitude and phase noise, resulting in superior stability and performance

‍

04

Compact and durable design

Picosecond fiber lasers are composed of high quality optical components

‍

Longueurs d'onde disponibles

Spécifications optiques

Custom Table

Central Wavelength	920 nm	1020-1080 nm	1020-1080 nm	1120-1240 nm
Spectral Width	<0.5 nm	Nearly Transform Limited	Broadband Pulses	Nearly Transform Limited
Fixed Repetition Rate*	80 MHz	10-100 MHz	10-100 MHz	30-100 MHz
Fixed Pulse Duration*	3-5 ps	6-60 ps	3 ps	15-100 ps
Average Power	1-20 mW	1-60 mW	2 mW	1-60 mW

‍

*Fixed within this range

Optional: FBG fiber stretchers can be requested to stretch pulses to hundreds of picoseconds while matching the higher-order dispersion of your compressor gratings

Specifications subject to change without notice

Mechanical Specs

All UFL-Pico Seeders are available in any of the following packages

Custom Table

Package Name	OEM	Lab	Rack Mount
Dimensions (L x W x H)	200 x 130 x 28.5 mm	227 X 170 X 37 mm 227 X 170 X 63 mm*	248 X 436 X 83 mm
Power Supply	5 V**	12 V**	Built-in
Cooling Method	Thermal Plate**	Thermal Plate**/Air Cooled	Thermal Plate**
